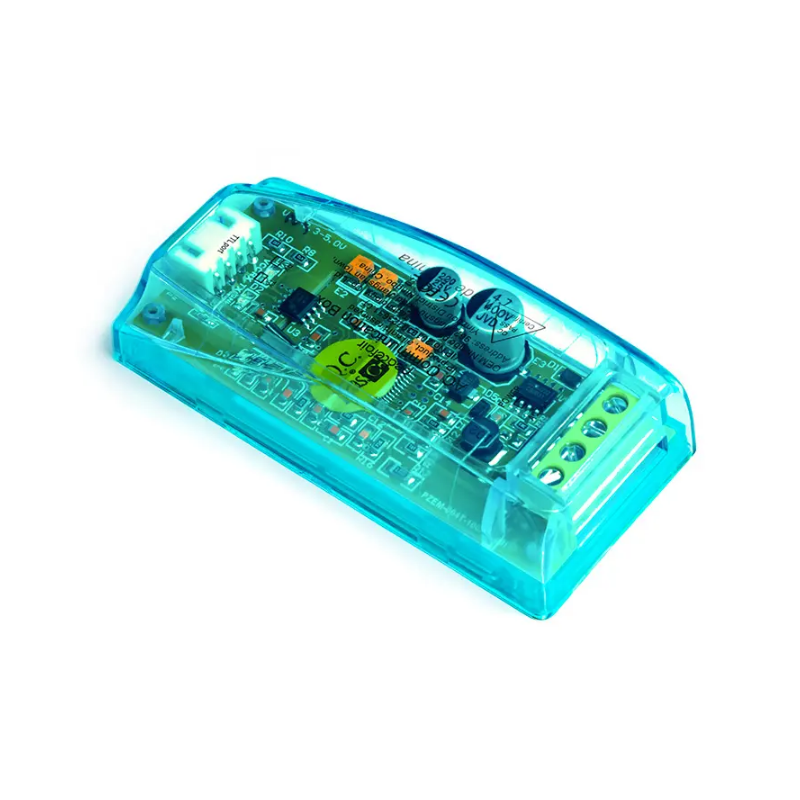

PZEM-004T V4.0 AC Digital Multifunction Meter Watt Power Volt Amp With CT 100A

📄 Description
The PZEM-004T V4.0 is a compact and reliable AC multifunction meter designed to monitor voltage, current, active power, energy consumption, frequency, and power factor in single-phase AC systems. It comes with a 100A split-core current transformer (CT) for easy, non-invasive current measurement.

Featuring UART serial communication, it easily interfaces with microcontrollers like Arduino, ESP32, and Raspberry Pi for data logging and smart energy management. The meter is ideal for home energy monitoring, industrial automation, and power consumption analysis.

🔧 Specifications:

• Model: PZEM-004T V4.0

• Measurement Parameters: Voltage, Current, Power (W), Energy (kWh), Frequency, Power Factor

• Current Transformer (CT): 100A split-core CT included

• Voltage Range: 80–260V AC

• Current Range: 0–100A AC

• Communication Interface: UART serial (TTL)

• Operating Frequency: 45–65 Hz

• Accuracy: ±1% (typical)

• Operating Voltage: 5V DC (for the meter module)

• Dimensions: Approx. 75 × 35 × 20 mm

🎯 Applications:

• Home and industrial energy monitoring

• Smart meter and automation projects

• Power consumption analysis

• Renewable energy systems

• IoT-based energy management

✅ Why Buy from Engineering Electronics?

• Genuine PZEM-004T V4.0 modules

• Tested and calibrated for accuracy

• Affordable price in Bangladesh

• Fast and reliable nationwide delivery

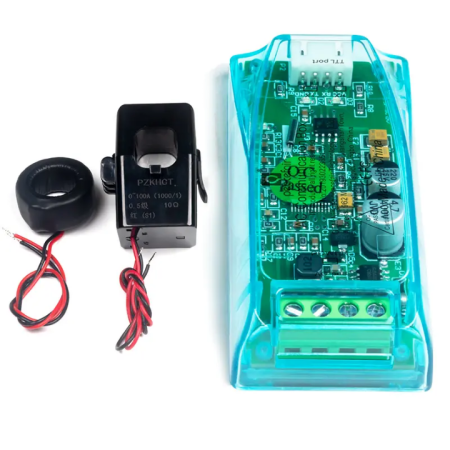

📦 Package Includes:

• 1 × PZEM-004T V4.0 AC Digital Multifunction Meter Module

• 1 × 100A Split-Core Current Transformer (CT)
