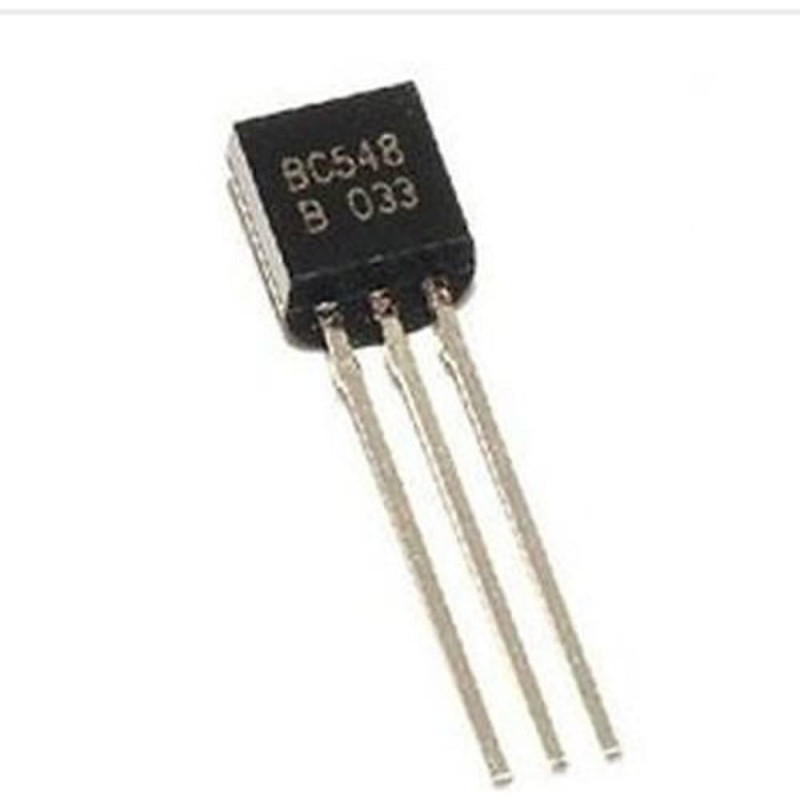

BC548 NPN Transistor

📄 Description

The BC548 is a widely used general-purpose NPN transistor suitable for low-current, medium-voltage, and low-power switching or amplification tasks.
It is ideal for signal processing, small DC motor driving, LED control, and hobby electronics projects.

It can be directly interfaced with Arduino, Raspberry Pi, or other microcontrollers for switching small loads or amplifying signals.

📟 Specifications:

• Type: NPN Bipolar Junction Transistor (BJT)

• Maximum Collector-Emitter Voltage (Vce): 30V

• Maximum Collector Current (Ic): 100mA

• DC Current Gain (hFE): 110 – 800

• Transition Frequency (ft): 150 MHz

• Power Dissipation (Ptot): 500mW

• Package: TO-92

• Pinout: Emitter, Base, Collector

🎯 Applications:

• Low power switching

• Signal amplification

• LED driver circuits

• Hobby electronics projects

• Arduino interfacing

✅ Why Buy from Engineering Electronics?

• Original high-quality BC548

• Suitable for educational and professional use

• Affordable price in Bangladesh

• Fast delivery & trusted technical support

📦 Package Includes:
1 × BC548 NPN Transistor
