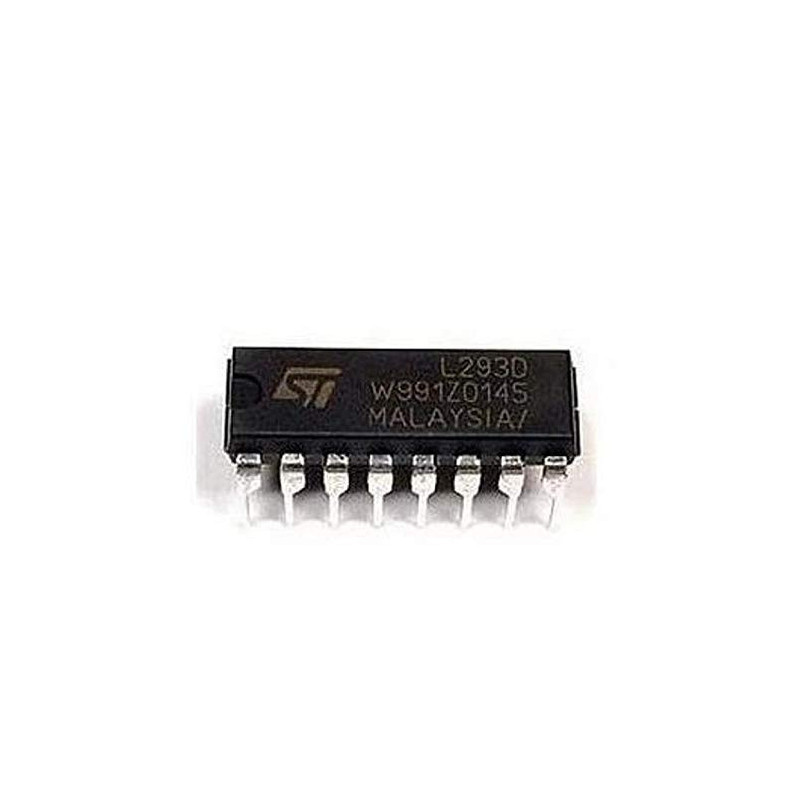

L293D Motor Driver IC(H-Bridge)

📄 Description

The L293D is a 16-pin dual H-Bridge motor driver IC designed to drive DC motors, stepper motors, and other inductive loads in both forward and reverse directions.

It supports bidirectional control and can be easily interfaced with microcontrollers like Arduino, ESP32, Raspberry Pi, PIC, and AVR. The IC can handle voltages up to 36V and currents up to 600mA per channel.

🔹 Specifications:

• IC Type: L293D Motor Driver (Dual H-Bridge)

• Operating Voltage: 4.5V to 36V

• Output Current: 600mA per channel (peak 1.2A)

• Logic Voltage: 5V TTL

• Channels: 2 (can control two DC motors or one stepper motor)

• Built-in diodes for back-EMF protection

• Dimensions: Standard DIP-16 package

🎯 Applications:

• Robotics projects

• Smart car motor control

• Stepper motor driving

• Conveyor systems

• CNC machines and automation

✅ Features:

• Controls speed and direction of motors

• Works with Arduino, ESP32, Raspberry Pi, and more

• Integrated protection diodes

• Compact DIP package for easy prototyping

📦 Package Includes:
1 × L293D Motor Driver IC
