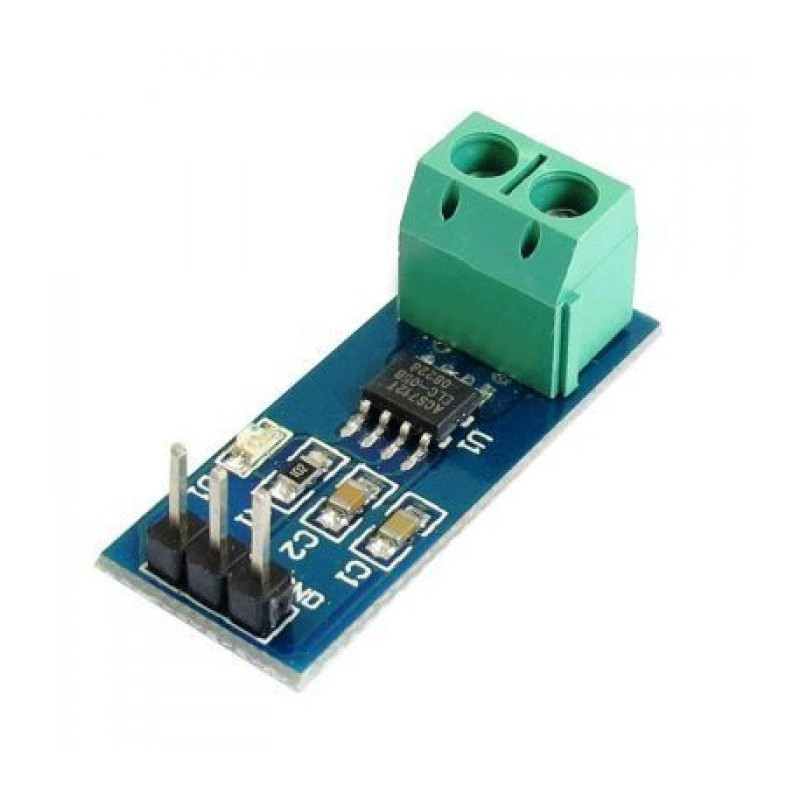

ACS712 Current Sensor Module 30A

📄 Description

The ACS712 30A Current Sensor Module is a reliable, high-precision current measuring device based on the Hall Effect principle. It can measure both AC and DC currents up to ±30A, making it ideal for power monitoring, motor control, battery charging systems, and IoT energy measurement projects.

The sensor outputs an analog voltage proportional to the current passing through it, allowing microcontrollers like Arduino, ESP8266, ESP32, Raspberry Pi to read and process the data easily.

🔧 Specifications:

• Model: ACS712ELCTR-30A

• Current Range: ±30A (AC/DC)

• Output: Analog voltage signal

• Sensitivity: 66mV/A (typical)

• Supply Voltage: 5V DC

• Operating Temperature: -40°C to +85°C

• Isolation Voltage: 2.1kV RMS

• Dimensions: Compact PCB with screw terminals

• Technology: Hall Effect sensing

🎯 Applications:

• AC/DC current measurement

• Power monitoring systems

• Battery management systems (BMS)

• Motor current sensing

• Inverter and solar power systems

• Overcurrent protection circuits

✅ Why Buy from Engineering Electronics?

• Genuine ACS712 sensor

• 100% tested before shipping

• Affordable price in Bangladesh

• Suitable for hobbyists and professionals

📦 Package Includes:

• 1 × ACS712 30A Current Sensor Module
