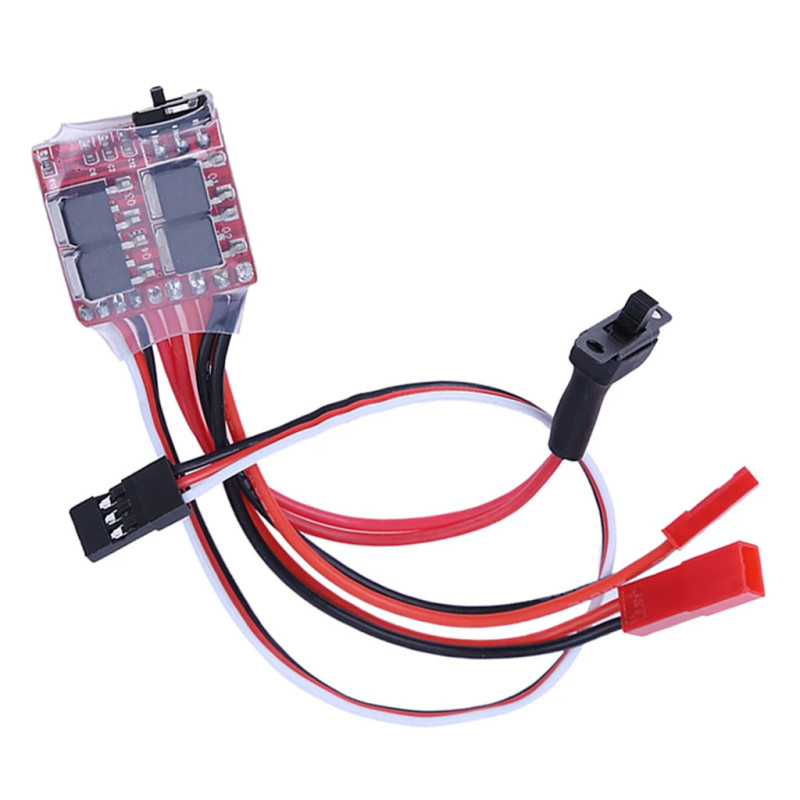

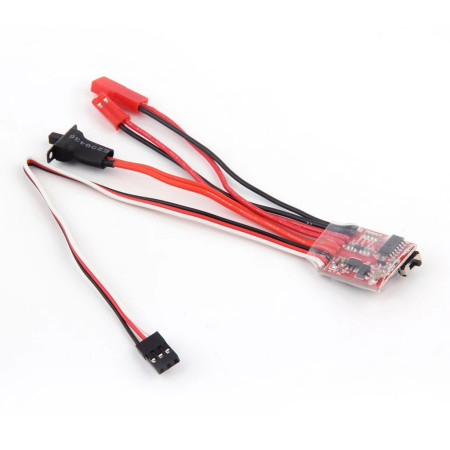

20A 4-8V Brushed Electronic Speed Controller ESC with Brake for RC Car Boat

Description:

This RC ESC 20A Brush Motor Speed Controller is designed to provide forward, reverse, and brake functions for 1/16 and 1/18 scale RC models. It works with a variety of brush motors (130/180/260/280/380) and is suitable for climbing RC cars, ships, tanks, and mini 4WD WPL cars. With a wide voltage range of 3.0V to 9.4V, this ESC ensures efficient power delivery and precise control, even in high-demand situations. The compact size and durable plastic material make it an ideal addition to your RC setup.

Name: 20A brush speed controller (Red Main Board)

Function: Forward, Reverse, Brake

Working voltage: 4.8V-8.4V

Dimensions(L*W*H): 35.0*22.0*6.0mm

Current(A): 20A

Driver frequency: 2KHz

Input: Li-Po 2S / Ni-Mh/Ni-cd 4-7cell

Constant current 20A Max 25A< 30s Pulsed 50A< 5s

Brake On / with brake

This ESC can work with 130/180/260/280/380 Brush Motor

Size: 20*20 MM
