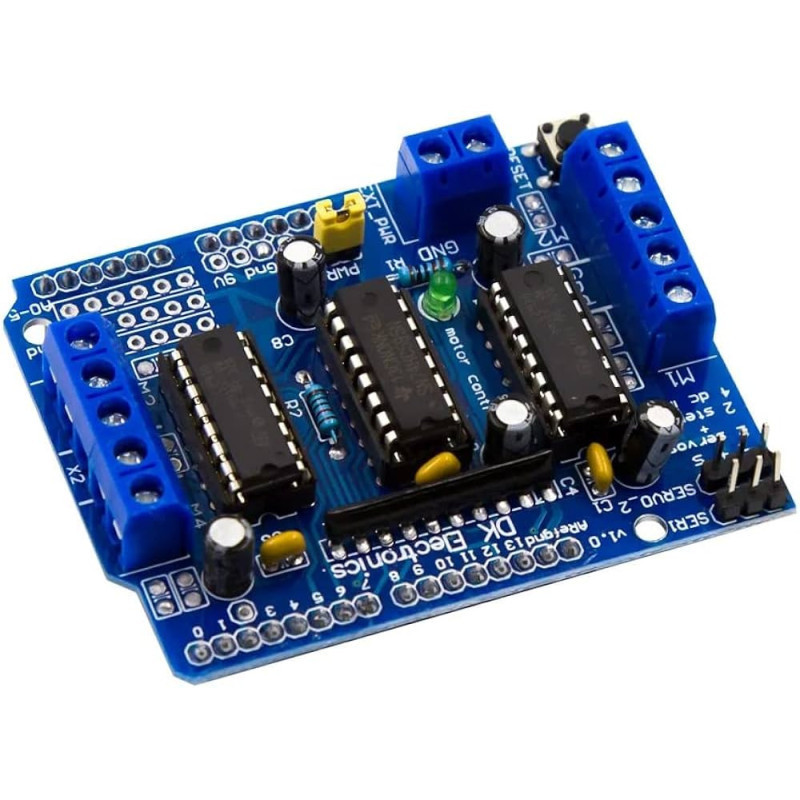

Arduino L293D Motor Driver Shield

The Arduino L293D Motor Driver Shield is a powerful add-on board that allows your Arduino to control DC motors, stepper motors, and servo motors with ease. It’s based on the L293D dual H-Bridge motor driver IC, enabling full control of up to 4 DC motors or 2 stepper motors, and 2 servo outputs.

This shield is perfect for building robot cars, line followers, robotic arms, or any motor-based automation project. It stacks directly onto Arduino Uno, Mega, or Leonardo boards with no wiring, making it ideal for beginners and advanced users alike.

Each motor channel supports direction and speed control via PWM signals, and the shield includes headers for easy servo motor connection.

🔧 Features:

• Based on L293D dual H-Bridge IC

• Controls 4 DC motors or 2 stepper motors

• 2 servo motor ports (powered directly from Arduino)

• Speed and direction control using PWM

• Supply voltage: 4.5V to 25V (external motor supply)

• Current: Up to 600mA per channel

• Stackable with other shields

• Compatible with Arduino Uno, Mega, Leonardo

🎯 Applications:

• Arduino robotics projects

• Line follower robot

• Motorized automation systems

• DIY RC cars

• Robotic arms and grippers

• Educational STEM kits
