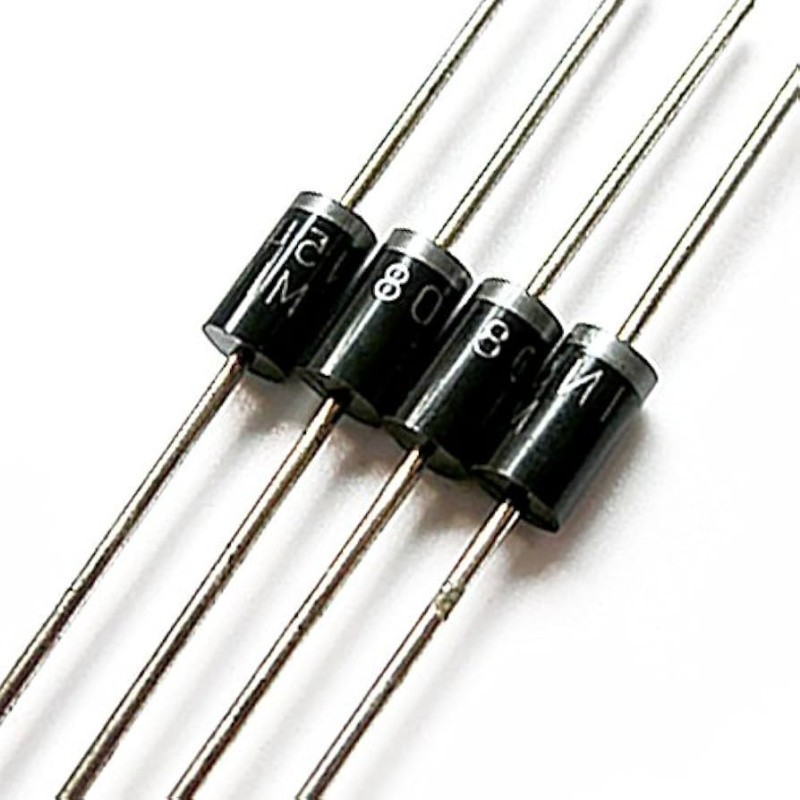

Diode 1N5408

The 1N5408 Diode is a high-voltage, high-current general-purpose rectifier diode rated at 3A and capable of withstanding reverse voltages up to 1000V. This diode is ideal for use in power supply circuits, AC to DC rectification, reverse polarity protection, and battery chargers.

It features a robust DO-201AD package and offers low forward voltage drop and high surge current capability, making it suitable for a wide range of electronics and electrical projects. Compatible with Arduino, SMPS, inverters, and motor driver circuits.

🔧 Specifications:

• Maximum Repetitive Reverse Voltage (VRRM): 1000V

• Maximum Average Forward Current: 3A

• Peak Forward Surge Current: 200A

• Forward Voltage Drop (max): 1.0V

• Package: DO-201AD

• Polarity: Cathode marked with a band

🎯 Applications:

• AC to DC bridge rectifiers

• Reverse voltage protection

• Battery chargers

• Power supply circuits

• DIY electronics and industrial controls
