DC-DC XL6009 Boost Adjustable Step Up Step Down Converter Module

The XL6009 DC-DC Boost Converter Module is a powerful step-up (boost) voltage regulator designed for projects that require an adjustable voltage higher than the input supply. It supports a wide input range of 3V to 32V and can output 5V to 35V, making it perfect for use in Arduino, Raspberry Pi, robotics, solar chargers, and other electronics where a stable higher voltage is required.

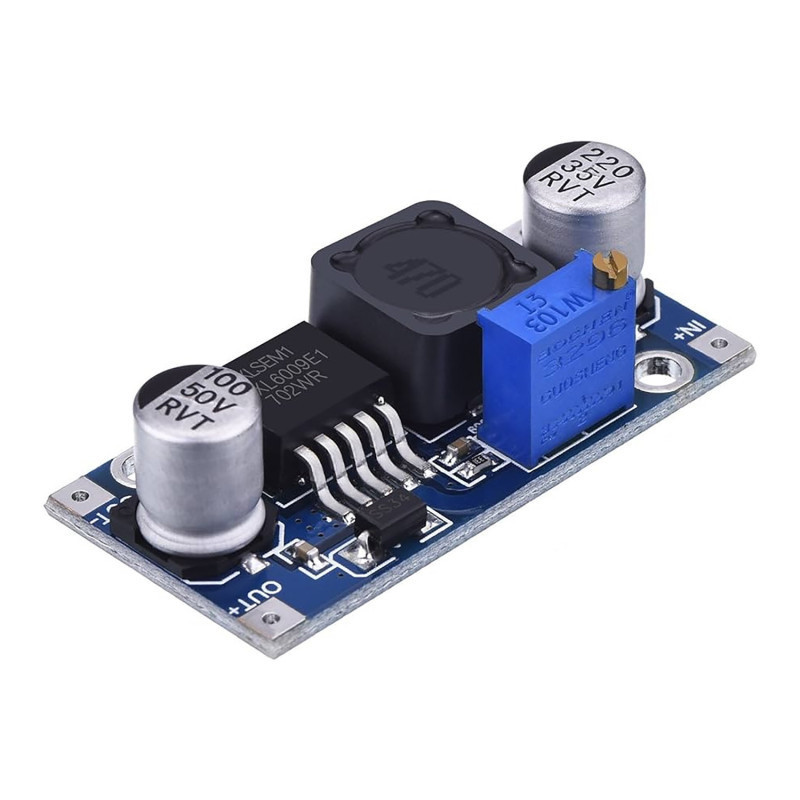

This module is based on the XL6009 switching regulator IC and includes a high-efficiency inductor, smoothing capacitors, and an adjustable potentiometer to precisely control the output voltage. It’s a reliable choice for converting battery voltage to power sensors, displays, motors, or logic boards.

🔧 Specifications:

• Input Voltage: 3V – 32V DC

• Output Voltage: 5V – 35V DC (adjustable)

• Output Current: up to 3A (with heat dissipation)

• Efficiency: Up to 94%

• Switching Frequency: 400kHz

• Module Type: Non-isolated Boost Converter

🎯 Applications:

• Arduino & Raspberry Pi projects

• Solar battery charging systems

• Robotics & embedded systems

• Motor drivers and LED lighting

• Power banks and portable electronics

• Custom DC power supply designs
