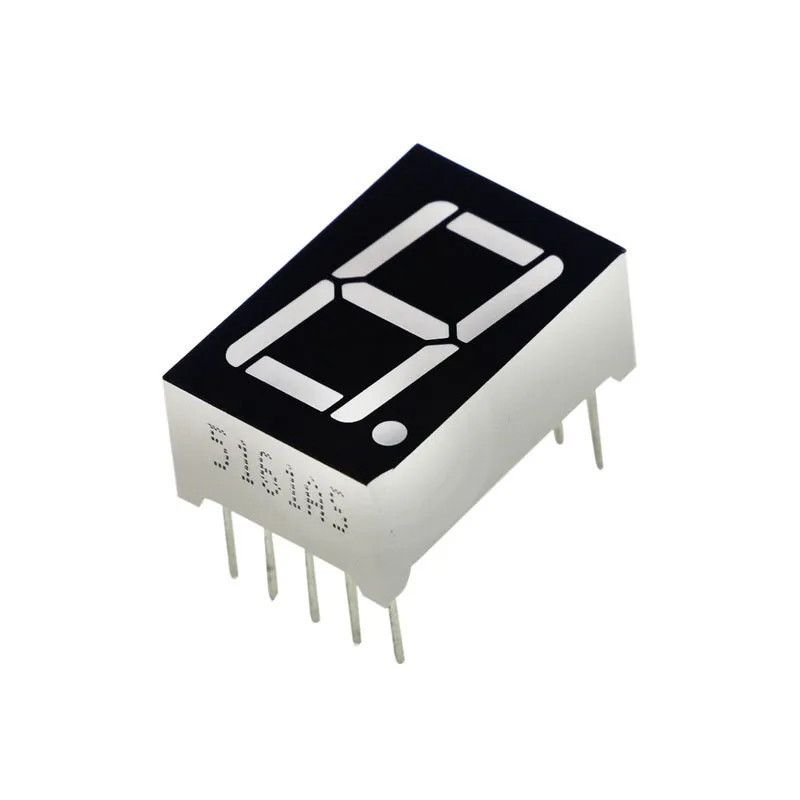

7 segment LED Display Common Anode/Cathod

The 7 Segment LED Display is a compact, easy-to-use component designed to show numeric digits (0–9) and some alphabets in embedded and electronic projects. It comes in Common Anode and Common Cathode configurations, depending on your circuit requirements.

With 7 individual LED segments arranged in a figure-8 pattern, this display is widely used in digital clocks, counters, timers, voltage displays, and microcontroller-based systems like Arduino or ESP32. It features high brightness, low power consumption, and a straightforward pin interface.

Choose the right version (Anode or Cathode) to match your driving logic. Works with shift registers, transistor arrays, and direct GPIO control.

🔧 Specifications:

• Type: 7 Segment LED Display

• Configuration: Common Anode / Common Cathode

• Number of Digits: 1

• Segment Color: Red

• Forward Voltage: ~2V per segment

• Forward Current: 10–20mA

• Package Type: Through-hole

🎯 Applications:

• Arduino & microcontroller numeric display

• Digital clocks and counters

• Timers and event triggers

• Measurement instruments

• DIY electronics and educational kits

• Robotics & embedded systems UI
