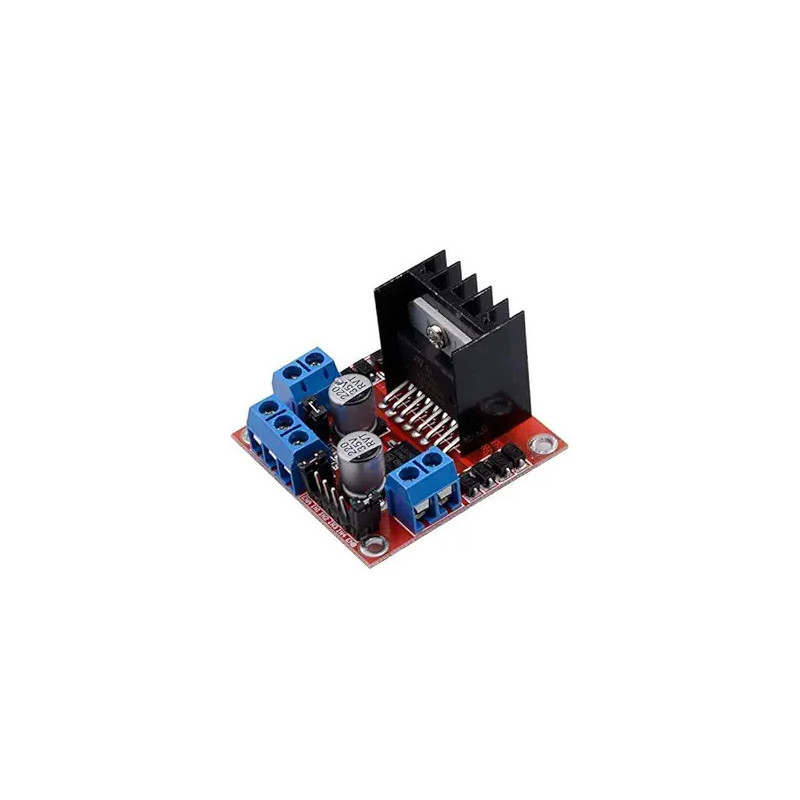

L298N H-Bridge Dual Motor Driver

Product Description:

The L298N Dual H-Bridge Motor Driver module allows you to control the speed and direction of two DC motors or a single stepper motor. It is based on the powerful L298N driver IC and is perfect for use with microcontrollers like Arduino, ESP32, Raspberry Pi, STM32, and more. Great for robotics projects, line-following robots, and automation systems.

🔍 Features:

• Based on L298N H-Bridge IC

• Drive 2 DC motors or 1 stepper motor

• Operating voltage: 5V – 35V

• Peak current: 2A per channel

• Built-in 5V regulator

• Enable pins for PWM speed control

• Input logic level: 3.3V or 5V compatible

• Compact and ready-to-use module

⚙️ Specifications:

• Driver IC: L298N

• Motor supply voltage: 5V – 35V

• Logic voltage: 5V (internal regulator)

• Current: 2A max per channel

• Dimensions: 43mm x 43mm x 27mm

• Weight: ~30g

• Heat sink attached for better dissipation

📘 Applications:

• Line-following robots

• Robotic arms and wheels

• DIY smart car kits

• Stepper motor control

• Home automation motorized systems

📏 Package Dimensions (Suggested):

• Approx: 5.5 cm x 5 cm x 3 cm

📦 Package Includes:

• 1x L298N Dual Motor Driver Module with Heatsink
