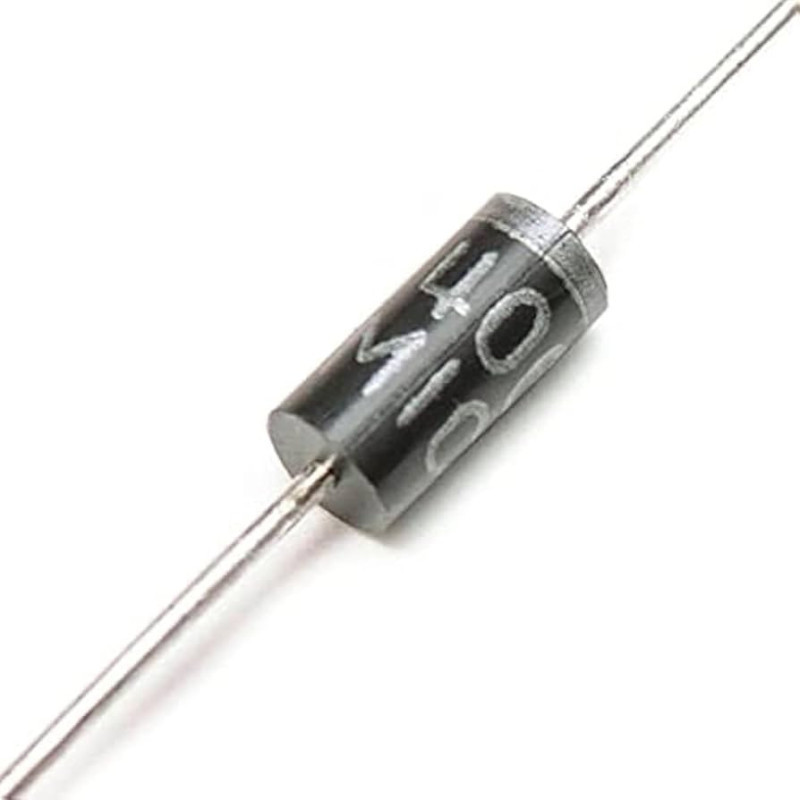

1N4007 Diode – 1000V 1A General Purpose Rectifier

The 1N4007 is a silicon rectifier diode designed for use in a wide range of AC to DC conversion circuits. It can handle up to 1000 volts reverse voltage and 1 ampere of continuous forward current, making it perfect for power supplies, battery chargers, and reverse polarity protection.

This diode is a go-to choice for DIY electronics, Arduino projects, robotics circuits, and small power adapters due to its reliability and ease of use.

🔧 Specifications:

• Diode Type: Rectifier Diode

• Model: 1N4007

• Max Repetitive Reverse Voltage (V_RRM): 1000V

• Forward Current (I_F): 1A continuous

• Surge Forward Current (I_FSM): 30A

• Forward Voltage Drop (V_F): 1.1V max

• Recovery Time: Slow

• Package: DO-41

• Polarity: Cathode marked with a band

🎯 Applications:

• AC to DC rectification

• Power supply circuits

• Battery charging systems

• Reverse polarity protection

• Hobby and DIY electronics

• Arduino and embedded circuits

✅ Why Choose 1N4007 Diode?

• ✅ High voltage rating (1000V)

• ✅ Reliable and widely used

• ✅ Ideal for low-frequency rectifier applications

• ✅ Compatible with breadboards and PCBs

• ✅ Affordable and available in bulk

📦 Package Includes:

• 1 × 1N4007 Diode
