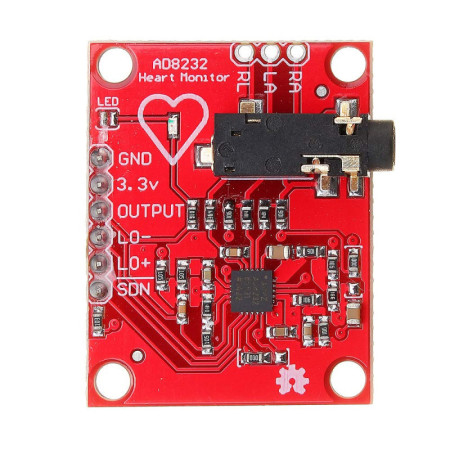

ECG AD8232 Heart Rate (Pulse) Sensor

.

📄 Description

The ECG AD8232 Heart Rate Sensor Module is a specialized single-lead ECG front-end module designed to measure the electrical activity of the heart. Based on the Analog Devices AD8232 chip, it can filter and amplify the tiny electrical signals generated by the heart to produce a clear ECG waveform that can be read by microcontrollers and PCs.

This module is widely used in DIY biomedical electronics, heartbeat detection systems, and portable health monitoring devices. It’s easy to interface with Arduino, ESP8266, ESP32, STM32, Raspberry Pi, and other microcontrollers.

📟 Specifications:

• Chipset: AD8232

• Operating Voltage: 3.3V – 5V

• Output: Analog ECG waveform signal

• Single-lead ECG measurement

• Integrated filter and amplifier

• Standard 3-electrode interface

• Compact PCB design for wearable applications

• Compatible with Arduino, ESP32, Raspberry Pi, etc.

🎯 Applications:

• Heart rate monitoring

• ECG waveform plotting

• Biomedical instrumentation projects

• Fitness tracking devices

• Health monitoring systems

✅ Why Buy from Engineering Electronics?

• 100% tested & genuine module

• Ready to use with Arduino sample codes

• Affordable price in Bangladesh

• Fast delivery and customer support

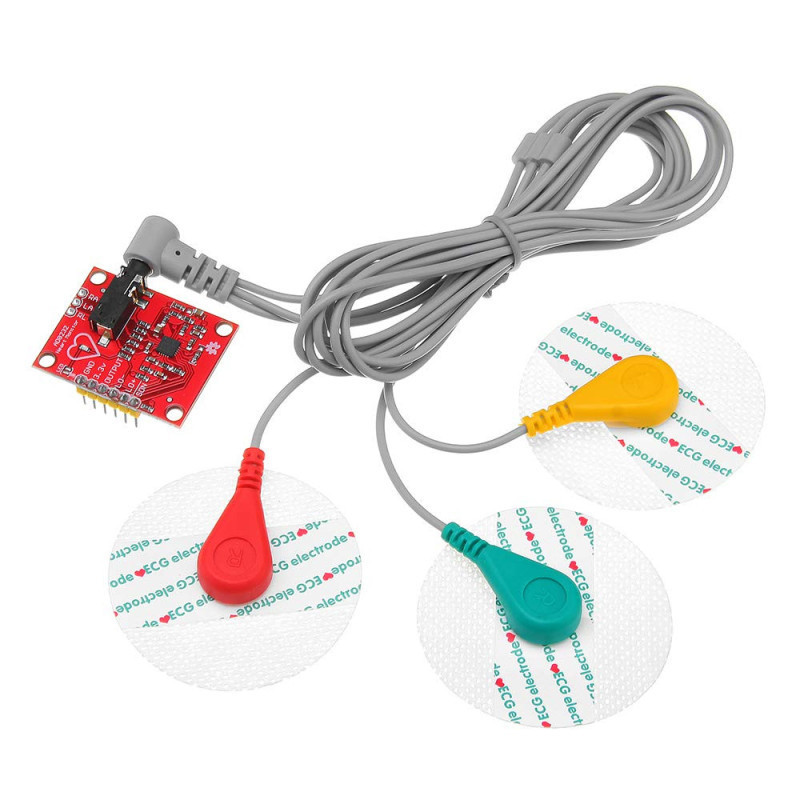

📦 Package Includes:

• 1 × ECG AD8232 Sensor Module

• 1 × Set of 3 ECG cables

• 3 × Disposable electrodes
