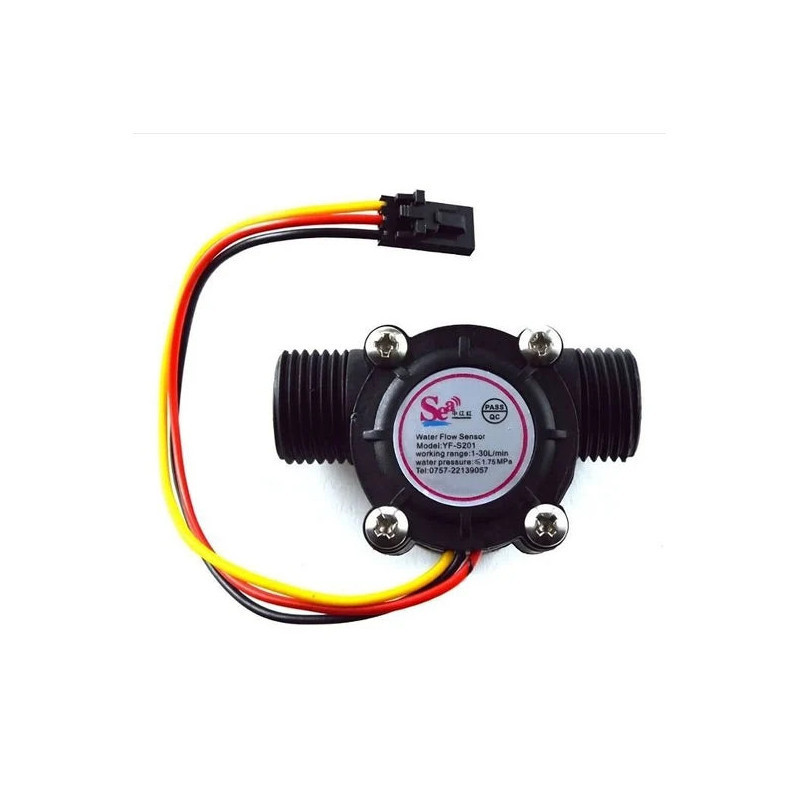

YF-S201- Water Flow Measurement Sensor

📄 Description
The YF-S201 Water Flow Measurement Sensor is a compact and reliable sensor designed to measure the flow rate of water and other non-corrosive liquids. It features a Hall effect sensor that outputs a digital pulse signal proportional to the flow rate, making it easy to interface with Arduino, ESP32, Raspberry Pi, and other microcontrollers.

With a flow range of 1–30 L/min and high sensitivity, the YF-S201 is widely used in water dispensers, automatic irrigation systems, liquid flow monitoring, and smart home automation. The sensor’s durable plastic body and sealed design ensure long-lasting performance.

🔧 Specifications:

• Model: YF-S201

• Material: Durable plastic housing

• Sensor Type: Hall effect

• Operating Voltage: 5–18V DC

• Max Current: 15 mA @ 5V

• Flow Rate Range: 1–30 L/min

• Water Pressure: ≤ 2.0 MPa

• Output Type: Digital pulse (frequency proportional to flow rate)

• Pulse Frequency Formula: F = 7.5 × Q (L/min)

• Operating Temperature: ≤ 80°C

• Connector: 3-pin (VCC, GND, Signal)

• Dimensions: Approx. 62 × 35 × 35 mm

🎯 Applications:

• Water flow monitoring systems

• Automatic irrigation

• Liquid dispensing machines

• Industrial flow measurement

• Smart home water usage tracking

• DIY electronics and automation

✅ Why Buy from Engineering Electronics?

• 100% genuine YF-S201 sensor

• Tested for accuracy before delivery

• Affordable price in Bangladesh

• Fast nationwide delivery

📦 Package Includes:

• 1 × YF-S201 Water Flow Measurement Sensor
