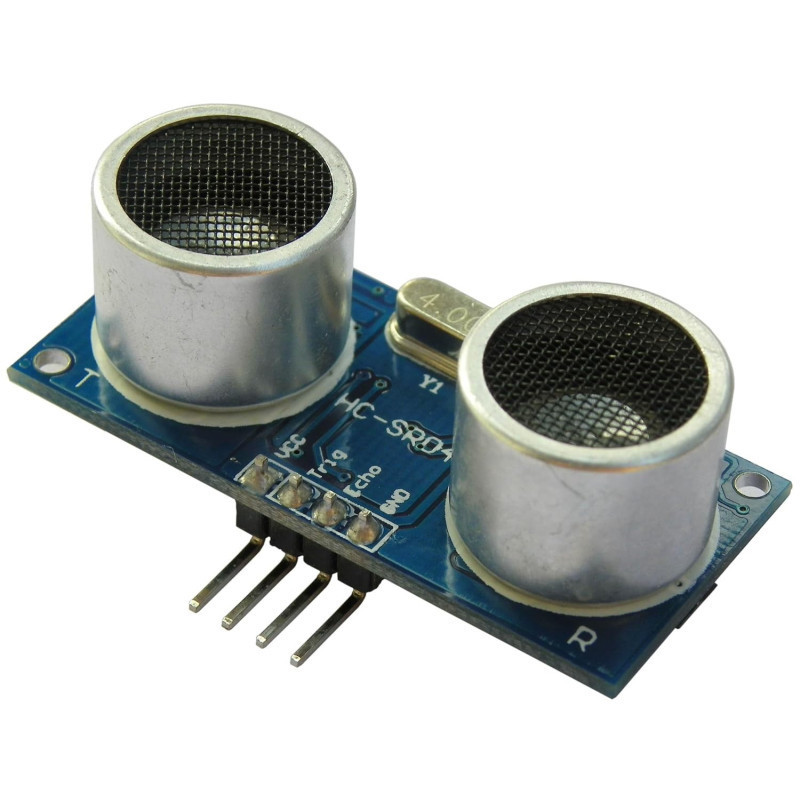

HC-SR04 Ultrasonic Sonar Distance Sensor Module for Arduino, Robotics & Automation

The HC-SR04 Ultrasonic Sensor is a reliable and affordable distance measuring module that uses sonar to detect objects from 2cm to 400cm. This sensor is widely used in Arduino projects, robotic vehicles, automated parking, level detection, and object avoidance systems.

It works by emitting ultrasonic waves and measuring the time it takes for the echo to return, calculating the distance accurately.

🔧 Specifications:

• Model: HC-SR04

• Operating Voltage: 5V DC

• Working Current: 15mA

• Measuring Range: 2cm – 400cm

• Accuracy: ±3mm

• Measuring Angle: ≤ 15°

• Trigger Input Signal: 10μs TTL pulse

• Echo Output Signal: TTL level signal

• Interface: 4 pins (VCC, Trig, Echo, GND)

• Dimensions: 45mm × 20mm × 15mm

🎯 Applications:

• Obstacle detection in robotics

• Smart parking systems

• Object avoidance in drones and cars

• Level sensing (e.g., water tanks)

• DIY automation systems

• Arduino & IoT projects

✅ Why Buy HC-SR04 from Us?

• ✅ High accuracy ultrasonic sensing

• ✅ Ideal for beginners and advanced users

• ✅ Affordable for educational & commercial use

• ✅ Compatible with Arduino, ESP32, Raspberry Pi

• ✅ Fast delivery anywhere in Bangladesh

📦 Package Includes:

• 1 × HC-SR04 Ultrasonic Distance Sensor Module
